Hydro-thermal power system planning problem: an introduction

The Brazilian interconnected power system have four regions, SE, S, N and NE, denoted by 0,1,2,3 for simiplicity. In each region, there are one integrated reserviour and several thermal plants to provide energy. Energy exchange is allowed between regions and an additional transshipment station. If demand can not be satisfied, a deficit cost will be incur. The objective is to minimize the total cost over the designing period meanwhile meeting energy requirements and feasibility constraints.

Notation

\(v_{it}\): stored energy in subsystem (reservior) \(i\) at the beginning of stage \(t\)
\(a_{it}\): energy inflow in subsystem \(i\) during stage \(t\)
\(q_{it}\): turbined energy (hydro generation) in subsystem \(i\) during stage \(t\)
\(s_{it}\): spilled energy in subsystem \(i\) during stage \(t\)
\(g_{kt}\): thermal generation at stage \(t\) of thermal plants \(k\) in each subsystem \(i\) during stage \(t\)
\(\textrm{ex}_{i\rightarrow j,t}\): energy exchange from subsystem \(i\) to subsystem \(j\)
\(\textrm{ex}_{j\rightarrow i,t}\): energy exchange from subsystem \(j\) to subsystem \(i\)
\(\textrm{df}_{ijt}\): deficit account for subsystem \(i\) in subsystem \(j\)

Formulation

Dynamics of each reservior \(i\) is given by

\begin{equation*} v_{i,t+1} + s_{it} + q_{it} - v_{it} = a_{it} \end{equation*}

Thermal plant generated energy and the hydro generated energy are the sources to satisfy demand. Energy can be exchanged between reserviors. Energy deficit will incur if demand can’t be met. The supply-demand equation is thus

\begin{equation*} q_{it} + \sum_{k\in\omega_i} \textrm{g}_{kt} + \sum_{j} \textrm{df}_{ijt} -\sum_{j} \textrm{ex}_{i\rightarrow j,t} +\sum_{j} \textrm{ex}_{j\rightarrow i,t} = d_{it} \end{equation*}

We assume there is no cost for hydro generation, \(\$u_k\) for every megawatt thermal plant \(k\) produces, \(\$v_{ij}\) for every megawatt deficit account produces. Objective is to minimize energy generation cost (in thousands) over 12 months

\begin{equation*} \sum_{t=1}^{12} \sum_i \big[\sum_k u_k g_{kt} + \sum_j v_{ij} \textrm{df}_{ijt}\big] \end{equation*}
[1]:

import pandas
import numpy
import matplotlib.pyplot as plt
from msppy.msp import MSLP
from msppy.solver import Extensive
from msppy.solver import SDDP
from msppy.evaluation import Evaluation
import gurobipy
import seaborn
seaborn.set_style('darkgrid')

Data

[2]:

hydro_ = pandas.read_csv("./data/hydro.csv", index_col=0)
demand = pandas.read_csv("./data/demand.csv", index_col=0)
deficit_ = pandas.read_csv("./data/deficit.csv", index_col=0)
exchange_ub = pandas.read_csv("./data/exchange.csv", index_col=0)
exchange_cost = pandas.read_csv("./data/exchange_cost.csv", index_col=0)
thermal_ = [pandas.read_csv("./data/thermal_{}.csv".format(i), index_col=0) for i in range(4)]

The hydro_ dataframe gives the upper bounds of stored energy and hydro generation. It also gives the initial value of stored energy and inflow energy.

[3]:

hydro_

[3]:
UB INITIAL
StoredEnergy_0 200717.6 59419.3000
StoredEnergy_1 19617.2 5874.9000
StoredEnergy_2 51806.1 12859.2000
StoredEnergy_3 12744.9 5271.5000
inflow_0 0.0 39717.5640
inflow_1 0.0 6632.5141
inflow_2 0.0 15897.1830
inflow_3 0.0 2525.2938
hydro_0 45414.3 0.0000
hydro_1 13081.5 0.0000
hydro_2 9900.9 0.0000
hydro_3 7629.9 0.0000

thermal_ is a list containing four dataframes. Each dataframe provides LB, UB, Obj for each thermal plants in a specific region.

[4]:

thermal_[0].head()

[4]:
LB UB OBJ
0
0 520.0 657 21.49
1 1080.0 1350 18.96
2 0.0 36 937.00
3 59.3 250 194.79
4 27.1 250 222.22

demand is a dataframe of monthly demand in each region. Demand is assumed to be deterministic.

[5]:

demand

[5]:
0 1 2 3
0 45515 11692 10811 6507
1 46611 11933 10683 6564
2 47134 12005 10727 6506
3 46429 11478 10589 6556
4 45622 11145 10389 6645
5 45366 11146 10129 6669
6 45477 11055 10157 6627
7 46149 11051 10372 6772
8 46336 10917 10675 6843
9 46551 11015 10934 6815
10 46035 11156 11004 6871
11 45234 11297 10914 6701

deficit_ dataframe gives the maximum deficit energy each region can afford and its related costs. For example, to meet the demand for region 0, the maximum deficit energy each region can afford is 5%, 5%, 10%, 80% respectively.

[6]:

deficit_

[6]:
OBJ DEPTH
0 1142.80 0.05
1 2465.40 0.05
2 5152.46 0.10
3 5845.54 0.80

The exchange_ub dataframe gives the upper bound of energy flows between four regions (0,1,2,3) and one transshipment station (4). Number 99999999 indicates no upper limit. The exchange_cost dataframe gives related costs.

[7]:

exchange_ub

[7]:
0 1 2 3 4
0 0 7379 1000 0 4000
1 5625 0 0 0 0
2 600 0 0 0 2236
3 0 0 0 0 99999
4 3154 0 3951 3053 0
[8]:

exchange_cost

[8]:
0 1 2 3 4
0 0.0000 0.0010 0.0010 0.0010 0.0005
1 0.0010 0.0000 0.0010 0.0010 0.0005
2 0.0010 0.0010 0.0000 0.0010 0.0005
3 0.0010 0.0010 0.0010 0.0000 0.0005
4 0.0005 0.0005 0.0005 0.0005 0.0000

Inflow modelling

Inflow energy is assumed to be random. In this example, we use historical monthly data as scenarios.
hist is a list containing four dataframes. Each dataframe gives historical monthly data for inflow energy.
[9]:

hist = [pandas.read_csv("./data/hist_{}.csv".format(i), sep=";") for i in range(4)]

[10]:

hist[0].head()

[10]:
YEAR JAN FEB MAR APR MAY JUN JUL AUG SEP OCT NOV DEC
0 1931 56896.80 86488.31 88646.94 64581.71 43078.74 32150.18 25738.04 20606.05 22772.16 23767.55 25831.89 38566.50
1 1932 56451.95 61922.34 50742.10 35954.27 27000.91 25285.24 19913.20 16801.72 15034.40 22347.14 25004.76 48755.60
2 1933 65408.16 51128.33 40424.25 34627.46 24456.72 19099.70 16790.67 14192.07 13741.74 17339.43 18503.66 36070.84
3 1934 46580.39 37113.35 35392.72 27179.93 19080.88 14173.57 11860.90 9904.96 11835.56 12925.78 13594.84 33700.23
4 1935 54645.97 72711.15 61323.17 54644.39 34731.77 26184.86 19927.38 19833.32 18289.43 34902.46 26176.69 32033.65

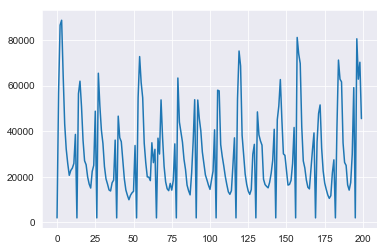

The following plot is the first 200 months inflow data for reservior one. It clearly shows a seasonality pattern. While in this tutorial we will pretend scenarios are stage-wise independent discrete.

[11]:

plt.plot(hist[0].values.flatten()[0:200])

[11]:

[<matplotlib.lines.Line2D at 0x1a23376400>]
../../_images/examples_hydro_thermal_introduction_22_1.png

Concatenate the four dataframes and remove NA

[12]:

hist = pandas.concat(hist, axis=1)
hist.dropna(inplace=True)
hist.drop(columns='YEAR', inplace=True)

Each column of hist dataframe now gives scenarios of monthly inflow energy.

[13]:

hist.head()

[13]:
JAN FEB MAR APR MAY JUN JUL AUG SEP OCT ... MAR APR MAY JUN JUL AUG SEP OCT NOV DEC
0 56896.80 86488.31 88646.94 64581.71 43078.74 32150.18 25738.04 20606.05 22772.16 23767.55 ... 23409.86 23382.44 10800.89 6555.49 4487.15 3223.12 2494.37 2569.03 4641.31 5928.45
1 56451.95 61922.34 50742.10 35954.27 27000.91 25285.24 19913.20 16801.72 15034.40 22347.14 ... 14320.59 10803.52 6621.21 4734.66 3104.44 2097.61 1673.39 2055.48 3710.95 6305.46
2 65408.16 51128.33 40424.25 34627.46 24456.72 19099.70 16790.67 14192.07 13741.74 17339.43 ... 13800.87 14378.16 9859.45 5247.05 3383.62 2428.81 1773.43 1617.70 4108.02 7741.12
3 46580.39 37113.35 35392.72 27179.93 19080.88 14173.57 11860.90 9904.96 11835.56 12925.78 ... 14352.06 13302.03 10134.26 5947.45 3729.34 2481.26 1469.26 1797.54 2322.72 5572.98
4 54645.97 72711.15 61323.17 54644.39 34731.77 26184.86 19927.38 19833.32 18289.43 34902.46 ... 18872.78 23222.27 15783.48 8962.09 5208.33 3864.63 2816.89 2790.11 4112.86 7840.01

5 rows × 48 columns

Disjoin scenarios for each regions.

[14]:

scenarios = [hist.iloc[:,12*i:12*(i+1)].transpose().values for i in range(4)]

Solution

[15]:

T = 3

[16]:

HydroThermal = MSLP(T=T, bound=0, discount=0.9906)
for t in range(T):
    m = HydroThermal[t]
    stored_now, stored_past = m.addStateVars(4, ub=hydro_['UB'][:4], name="stored")
    spill = m.addVars(4, name="spill", obj=0.001)
    hydro = m.addVars(4, ub=hydro_['UB'][-4:], name="hydro")
    deficit = m.addVars(
        [(i,j) for i in range(4) for j in range(4)],
        ub = [demand.iloc[t%12][i] * deficit_['DEPTH'][j] for i in range(4) for j in range(4)],
        obj = [deficit_['OBJ'][j] for i in range(4) for j in range(4)],
        name = "deficit")
    thermal = [None] * 4
    for i in range(4):
        thermal[i] = m.addVars(
            len(thermal_[i]),
            ub=thermal_[i]['UB'],
            lb=thermal_[i]['LB'],
            obj=thermal_[i]['OBJ'],
            name="thermal_{}".format(i)
        )
    exchange = m.addVars(5,5, obj=exchange_cost.values.flatten(),
        ub=exchange_ub.values.flatten(), name="exchange")
    thermal_sum = m.addVars(4, name="thermal_sum")
    m.addConstrs(thermal_sum[i] == gurobipy.quicksum(thermal[i].values()) for i in range(4))

    for i in range(4):
        m.addConstr(
            thermal_sum[i]
            + gurobipy.quicksum(deficit[(i,j)] for j in range(4))
            + hydro[i]
            - gurobipy.quicksum(exchange[(i,j)] for j in range(5))
            + gurobipy.quicksum(exchange[(j,i)] for j in range(5))
            == demand.iloc[t%12][i]
        )
    m.addConstr(
        gurobipy.quicksum(exchange[(j,4)] for j in range(5))
        - gurobipy.quicksum(exchange[(4,j)] for j in range(5))
        == 0
    )
    for i in range(4):
        if t == 0:
            m.addConstr(
                stored_now[i] + spill[i] + hydro[i] - stored_past[i]
                == hydro_['INITIAL'][4:8][i]
            )
        else:
            m.addConstr(
                stored_now[i] + spill[i] + hydro[i] - stored_past[i] == 0,
                uncertainty={'rhs': scenarios[i][t%12]}
            )
    if t == 0:
        m.addConstrs(stored_past[i] == hydro_['INITIAL'][:4][i] for i in range(4))

Academic license - for non-commercial use only
Academic license - for non-commercial use only
Academic license - for non-commercial use only

[17]:

# Use the extensive solver
Extensive(HydroThermal).solve(outputFlag=0)

Academic license - for non-commercial use only

[17]:

782309.1877977113

[18]:

# Use the SDDP solver
HydroThermal_SDDP = SDDP(HydroThermal)
HydroThermal_SDDP.solve(logFile=0, n_processes=3, logToConsole=0, max_iterations=300)

[19]:

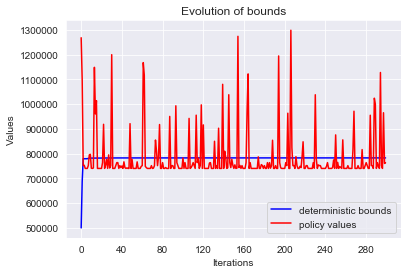

HydroThermal_SDDP.plot_bounds();
../../_images/examples_hydro_thermal_introduction_34_0.png

We now evaluate the policy by computing the policy values exhaustively for every scenarios. Suppose we are interested in solutions of hydro-generation.

[20]:

result = Evaluation(HydroThermal)
result.run(n_simulations=-1, query = ['hydro[{}]'.format(i) for i in range(4)])
%matplotlib inline
result.solution['hydro[0]'].mean().plot(legend = False)

[20]:

<matplotlib.axes._subplots.AxesSubplot at 0x1a23705e48>
../../_images/examples_hydro_thermal_introduction_36_1.png

epv is the exact value of the expected policy value. pv is the list of computed policy values.

[22]:

result.gap, result.epv, numpy.std(result.pv)

[22]:

(4.047462777712249e-07, 782309.0736226843, 96882.62071229359)
